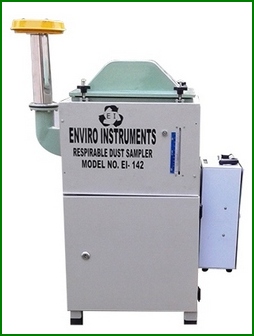

Respirable Dust Sampler
Dust Sampler is designed and developed for monitoring of PM10 particulate in air. These equipment meets most of the requirement of BIS 5182 (Part 23) 2006. The particulate matter 10 micron and below in size are directly sucked by a blower through corrosion free aluminum modular pipe from ambient air. Further, these are passed through a cyclone which divides the particulate matters in two fraction which are below 10 micron and another above 10 microns. Apart from this, we serve our clients satisfactorily by supplying these products at market leading rates.
Owing to its modular design, EI-142 can be easily paired with a gaseous sampling attachment (for monitoring SO2, NOx, NH3, Ozone etc.) as gaseous sampling requires only a few LPM of air flow. This is possible through an attachable subsidiary unit EI-061. Kindly refer to respective brochures of EI-061.
- Brushless blower reduces equipment downtime and maintenance effort.
- Lockable casters and gaseous attachment.
- Improved cabinet design which is more sturdy and durable with SS hardware.
- Brushless blower reduces equipment downtime and maintenance efforts
- Significantly reduce Noise
- Flow Rate:0.9 – 1.4 m3 /min free flow
- Particle Size: Particles of 10 microns & below collected on Filter Paper holder. SPM bigger than 10 microns collected in a separate sampling bottle under the cyclone
- Sampling Time: 28 hours (maximum)
- Sampling Time Record: 0 to 9999.99 hrs. recorded on a Time Totalizer
- Power requirement: Nominal 220 V, Single Phase, 50Hz AC mains supply. For proper operation and safety a good earth connection is mandatory
- Size & Weight: 420 x 340 x 790 mm, 40 Kg
- Automatic Sampling: 24 hours programmable timer to automatically shut off the system after pre-Control set time interval.
- Warranty: One year
