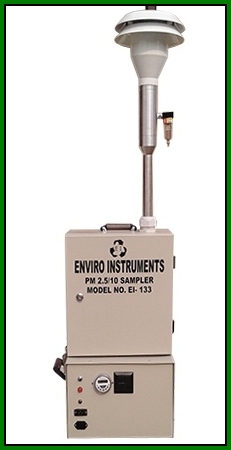

PM10 and PM2.5 Impactors of sampler based on designs standardized by US EPA
Two part cabinet ensures that temperature of PM 2.5 filter remains close to ambient temperature
Diaphragm Pump with a low noise
Lower sampling rate of 1m3/hr reduces filter choking even in areas having high FPM levels
Critical Orifice maintains constant sampling rate of 1 m3/hour
Sampler can run continuously 24 hrs monitoring
Low power consumption
Low weight essay to transport in field
Can be measure PM10 or PM2.5 at a time
Calibration Certificate for each instrument shall be provided with instruments
Compact and portable.
Nominal 220 V, Single Phase, 50Hz AC mains supply. For proper operation and safety a good earth connection is mandatory
24 hrs programmable timer to automatically shut off the system after pre-Control set time interval.
Filter holder designed to accept any standard 47 mm diameter filter media
Weight: Approx 25 Kg.
Warranty: One year
Owing to its modular design, EI-133 can be easily paired with a gaseous sampling attachment (for monitoring SO2, NOx, NH3, Ozone etc.) as gaseous sampling requires only a few LPM of air flow. This is possible through an attachable subsidiary unit
